IP67 Rated Backlight Industrial Metal Keypad With 0.45mm Short Stroke

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

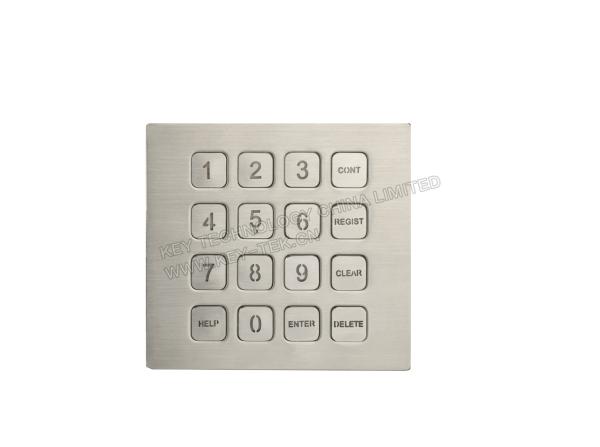

IP67 Rated Backlight Industrial Metal Keypad With 0.45mm Short Stroke

Brand Name : IKB-MKB

Model Number : K-TEK-B86KP-BL-DWP

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Panel : Top panel mounting

Interface : USB, PS/2, RS232

Key travel : 0.45mm short stroke

Material : 304 stainless steel

Colour : Brushed stainless steel or black

Backlit colour : Red or Blue

Contact Now

IP67 rated industrial backlight kiosk metal keypad with 0.45mm short stroke

DESCRIPTION:

16 keys compact format IP67 dynamic vandal proof Stainless Steel industrial numeric keypad with industrial metal dome PCB electronics controller shieded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included. (Red/blue/white/green optional), top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel, with threaded bolts under top stainless steel plate for top panel mounting solution.

DIMENSIONS: 86.0mm x 90.0mm (Front Panel)

ELECTRICAL DATA:

Supply Voltage +5V DC +/-5%
Current Rating appr. 20mA
EMC Standard It is compliance with the council EMC directive 89/336/EEC
EN55022 1988+A1:2000+A2:2003
EN55024 1988+A1:2001+A2:2003
Emission EN 50081-1
Immunity EN 50082-1
Lifespan > 5 years
Switch Contact Material Gold-on-Gold key switch technology PCB
Interface PS2, USB, RS232, RS485 available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

Applications:

1,Unsupervised or semi -supervised positions of varied access applications;

2,Internet terminals and information kiosks at universities

3,Shopping malls, hotels, airports, railway stations and other public areas

4,ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc

MECHANICAL DATA

  • Actuator/keys: 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
  • Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
  • Key Size: 14.0mm x 14.0mm for normal keys
  • Key travel: 0.45mm
  • Actuation Force: 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
  • Switch life: more than 5 million of operations.
  • Front Plate: 1.5mm thickness super quality brushed stainless steel
  • Back Stainless steel housing: 1.0mm thickness super quality stainless steel
  • G.W.: 0.60KGs

ENVIRONMENTAL ADAPTABILITY:

  • Operating temperature:-20oC to +60oC
  • Storage temperature: -30oC to +70oC
  • Operating RH: 30-90%
  • Atmospheric pressure: 60-106Kpa.
  • Saline mist: 96 hours, IEC 60512-6
  • Damp heat test at + 40oC: 21 days, IEC 60512-6
  • Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY:

  • RoHS Compliant, CE and FCC, ESD
  • Protection Level: IP67(front panel)
  • Vandal resistant IK10
  • Key Lifespan >5 million actuations
  • MTBF >50000H

Mechanical Drawing:

IP67 Rated Backlight Industrial Metal Keypad With 0.45mm Short Stroke

Actual Photo:

IP67 Rated Backlight Industrial Metal Keypad With 0.45mm Short Stroke

Back view:

IP67 Rated Backlight Industrial Metal Keypad With 0.45mm Short Stroke

Application Photos:

IP67 Rated Backlight Industrial Metal Keypad With 0.45mm Short Stroke

Our Factory:

IP67 Rated Backlight Industrial Metal Keypad With 0.45mm Short Stroke

IP67 Rated Backlight Industrial Metal Keypad With 0.45mm Short Stroke
