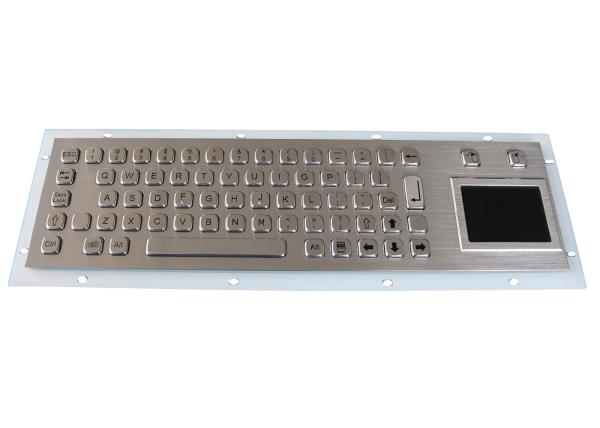

PS2 IP67 Industrial Level Keyboard With Cursor Touchpad

  • 1
  • 2

Brand Name : IKB-MKB

Model Number : K-TEK-A392TP-DWP

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Keys number : 74 keys

Key travel : 2.0mm

IP grade : IP67

Interface : PS2, USB available

G.W : 1.80KGS

Lifespan : 5 years

Operating temperature : -20oC to +60oC

MTBF : 20000H

Contact Now

DESCRIPTION: 74 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional)for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise. one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, top stainless steel plate with side threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSIONS: 400.0mm x 124.0mm (top panel)
MECHANICAL DATA
Actuator/keys68 keys, super quality SUS304 brushed stainless steel.
Key top styleProtuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Siz14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel2.0mm
Actuation Force1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch lifemore than 5 million of operations.
Front Plate1.5mm thickness super quality brushed stainless steel
Back Plate3.0mm thickness brushed & oxidized aluminium
Touchpadsealed and ruggedized tough touchpad
TouchpadComposite
LifetimeMore than Lifetime 5 million strokes
X/Y position sensing resolution40 counts/mm
X/Y position reportingRelative
Output (self-detectable depending on cable)PS2 or USB
Tracking speedMaximum 1,016 m/sec
Power supply voltage5 VDC ±0.25V
Current rating (active mode)17 mA
G.W.1.80KGs

ENVIRONMENTAL ADAPTABILITY & RELIABILITY
Supply Voltage+5V DC +/-5%
Current Rating: appr80mA
EMC StandardEN 55032:2015, EN 55035:2017
Lifespan> 5 years
Switch Contact MaterialCarbon-on-Gold key switch technology PCB.
InterfacePS2, USB available
Operating temperature-20oC to +60oC
Storage temperature-30oC to +70oC
Operating RH30-90%
Atmospheric pressure60-106Kpa
Saline mist96 hours, IEC 60512-6
Damp heat test at + 40oC21 days, IEC 60512-6
Dry heat test at + 85oC10 days, IEC 60512-6
Protection Level:IP67
Vandal resistantIK08
Key Lifespan >5 million actuations
MTBF>20000H
MTTR<30min
PS2 IP67 Industrial Level Keyboard With Cursor Touchpad
PS2 IP67 Industrial Level Keyboard With Cursor Touchpad

PS2 IP67 Industrial Level Keyboard With Cursor Touchpad
